For superior durability and flexibility, saddle up.

A breakthrough in saddle design, the patented Rollee Flexible Saddle demonstrates superior flexibilty in more than one way. The saddle`s elastrometric construction allows a single description to securely fit 6" sewer main pipe diameters and up. The saddle`s flexibility eliminates the need for a large inventory of rigid PVC saddles of various descriptions.

Flexible Saddle offers the following product benefits:

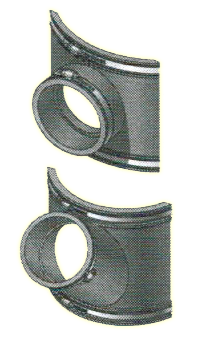

  • Two configurations, a "Tee" and a "Wye" are available in 4" or 6" inlet descriptions
  • Esometric construction provides maximum strength and flexibility
  • Saddle design will accomodate polyethylene pipe used in slip lining sewer systemms
  • Inlet range from SCH-40 down to SDR-35 includes standard weight soil pipe
  • Stainless steel series 300 clamps ensure tight seal

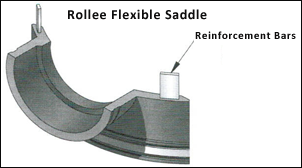

  • Steel reinforced edges prevent distorion when torque is applied to clamps
  • Durable design and low unit price make the Flexible Saddle economical and environmentally wise
  • Available Saddle Blanket, attached to pupe prior to saddle installation, will mend imperfections and cracks on clay pipe taps



Flexible Saddles

alt Part No. Description Color PKG QTY
4-RST 4" Saddle Tee Black 12
4-RSY 4" Saddle Wye Black 12
6-RST 6" Saddle Tee Black 6

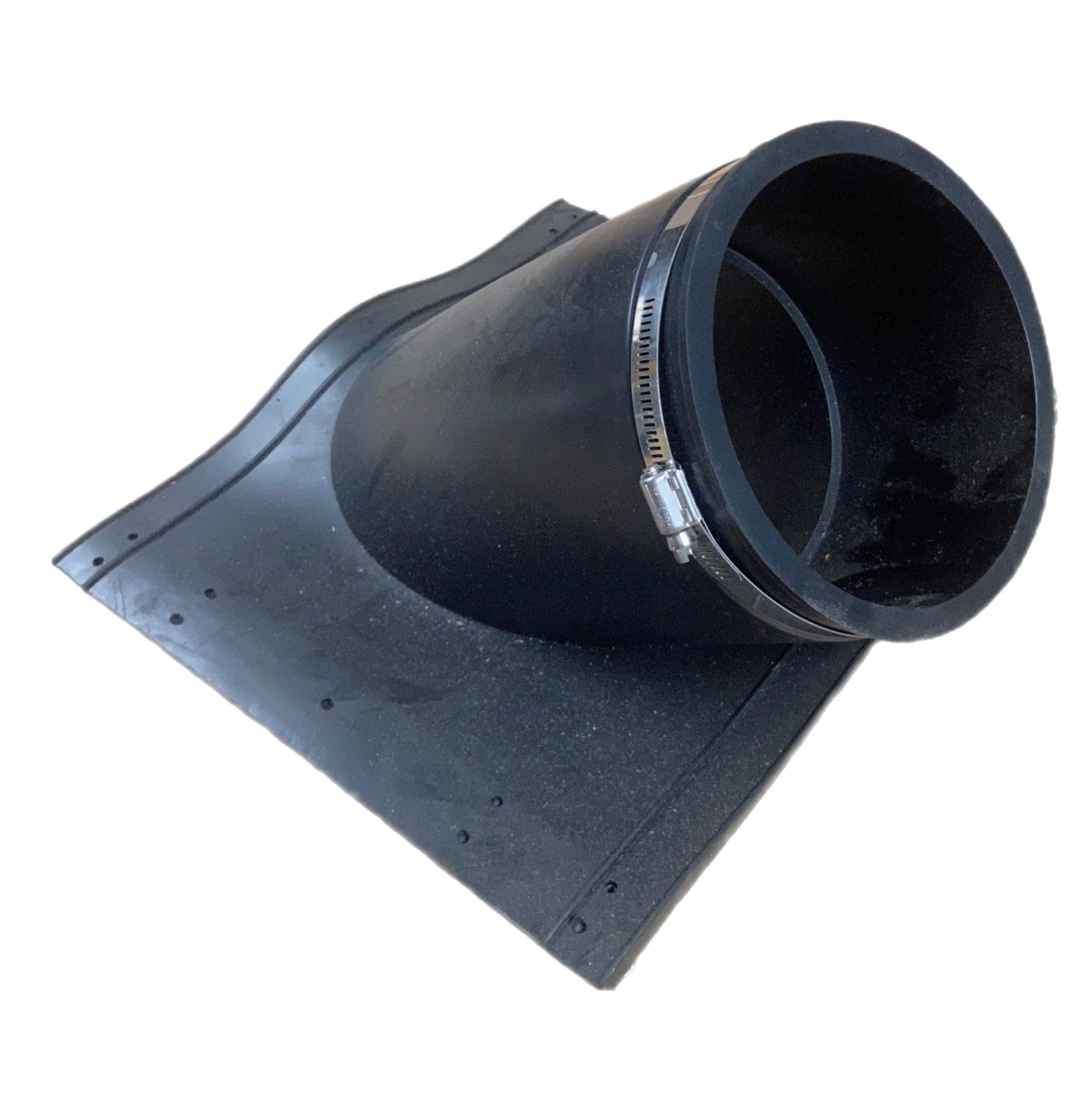

6-RSY 6" Saddle Wye Black 6



ASTM Material Specification

Test Material ASTM Test mateial
Chemical Resistance
  • In Sulfuric Acid
  • In Hydrocloric Acid



No weigh loss
No weight loss

D543
Tensile Strength Elongation 1000 psi (7/Mpa) min, 200% min. elongation at break D412 Dle "C"
Duration Hardness Shore Durometer 50 min to 75 max D2240
Compression Set 90% max of original deflection D395, Method B Type 2
Water Absorbsion 5% max D471 , immersed 7 days @ 158 Method A
Ozone Resistance No visible cracking under 7x magnification D1149, D518 Method A
Oven Aging

75% min of original tensile strength
65% min of original elongation

D573 (158° F for 70 hours)
Cold Brittleness Cold Brittleness was determined to be -43°C D476
Tear Strength 125 lbs / in D624 Die "C"



Installation Instructions

Step 1

STEP 1:
Standard Saddle

Step 2

STEP 2:
Invert saddle and press down against the curvature of the pipe to obtain the correct deflection of the skirt as illustrated.

Step 3

STEP 3:
Locate the saddle with the deflected skirt over the tap hole

Step 4

STEP 4: Tighten clamps to a minimum of 60 inchj-Lbs (5ft-Lbs torque).
Bend and backfill according to engineer`s specifications.
