Swift Cap
We provide the "Swift Cap" with and without the hose bibb nozzle feature, our sizes range from 1.50", 2.00", 3.00", 4.00", 6.00" and 8.00" cap. Our flexible "Swift Cap" is a neoprene crafted item specified to the ASTM requirements. Includes a stainless steel 300 series gear clamp along with a 300 series clamp housing and band.
Part No. | SC - 150 | SC - 200 | SC - 300 | SC - 400 | SC - 500 *custom* | SC - 600 | SC - 800 |
Size | 1.50" (38mm) | 2.00" (50mm) | 3.00" (76mm) | 4.00" (101mm) | 5" (127mm) | 6" (152mm) | 8" (203mm) |

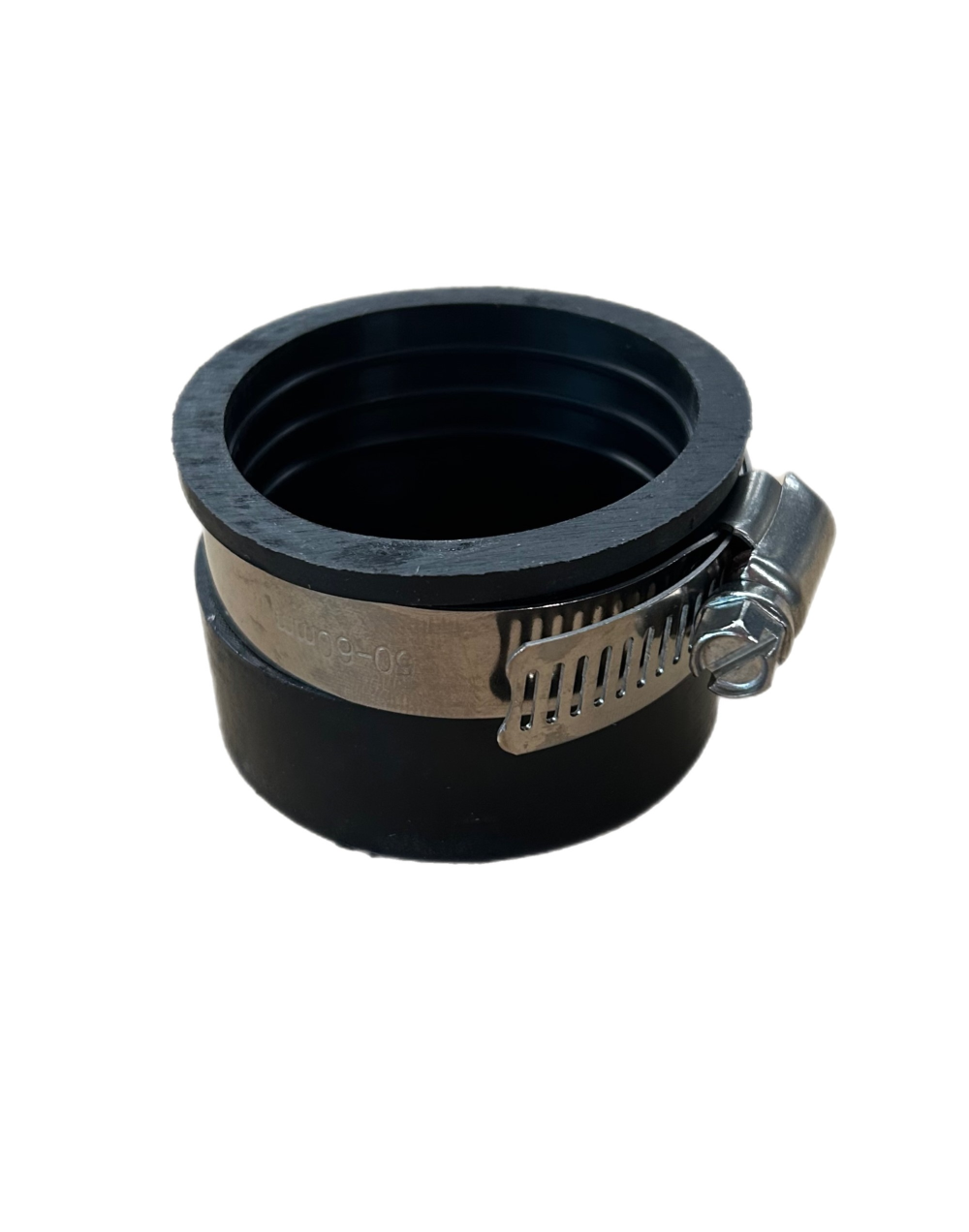

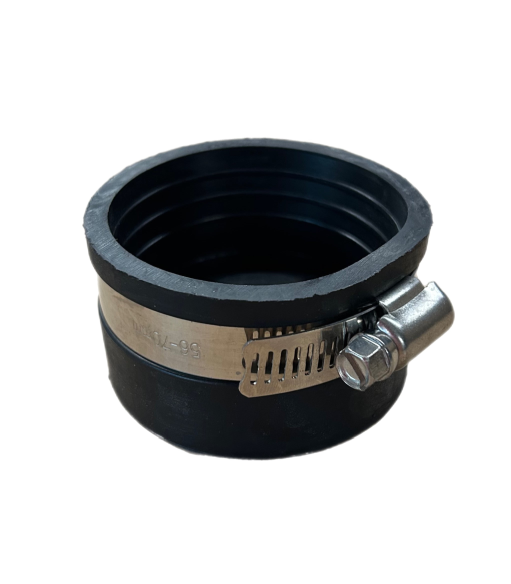

SC - 150 SC - 200

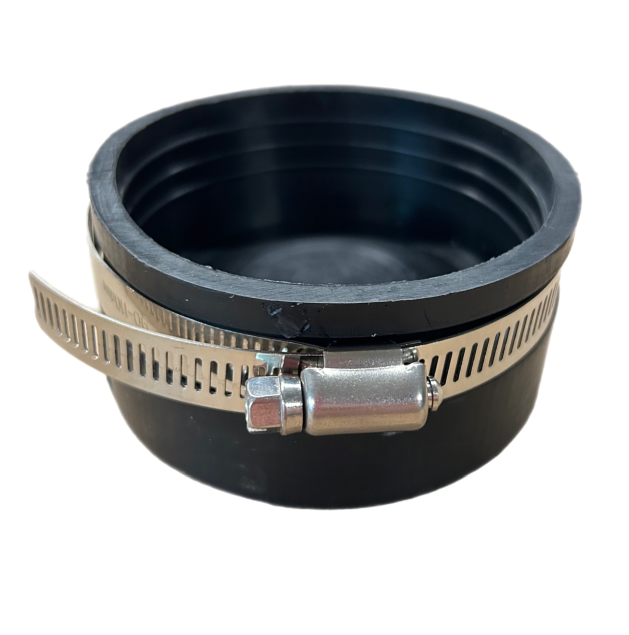

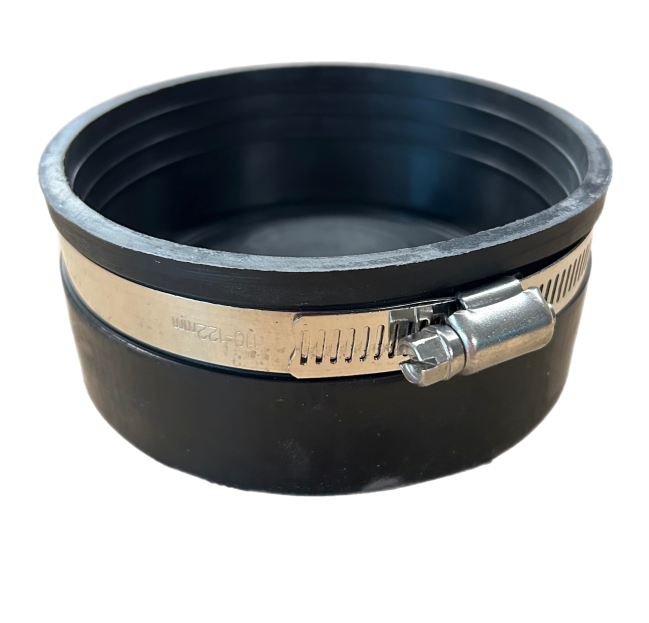

SC - 300 SC - 400

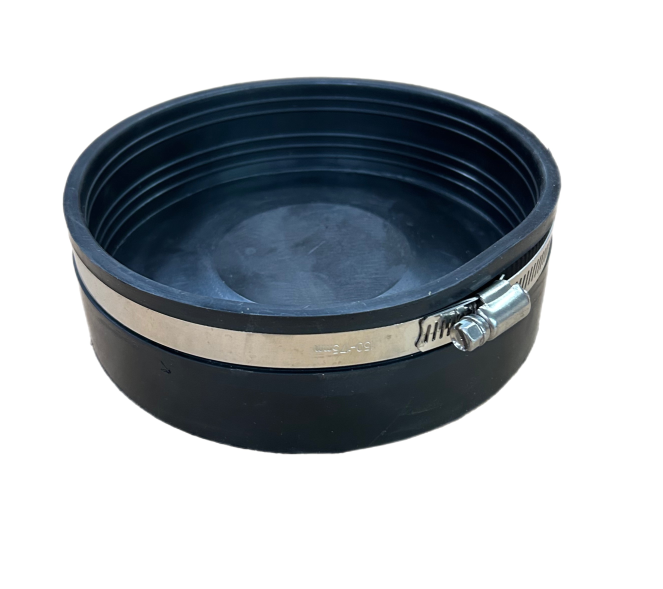

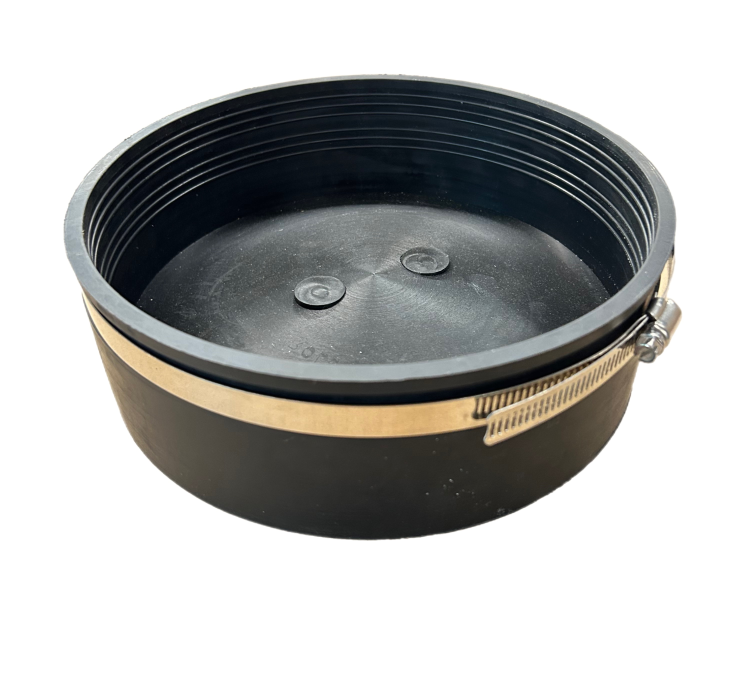

SC - 600 SC - 800
By adding a specific sized bushing we can achieve sizes not listed for an addition rate.

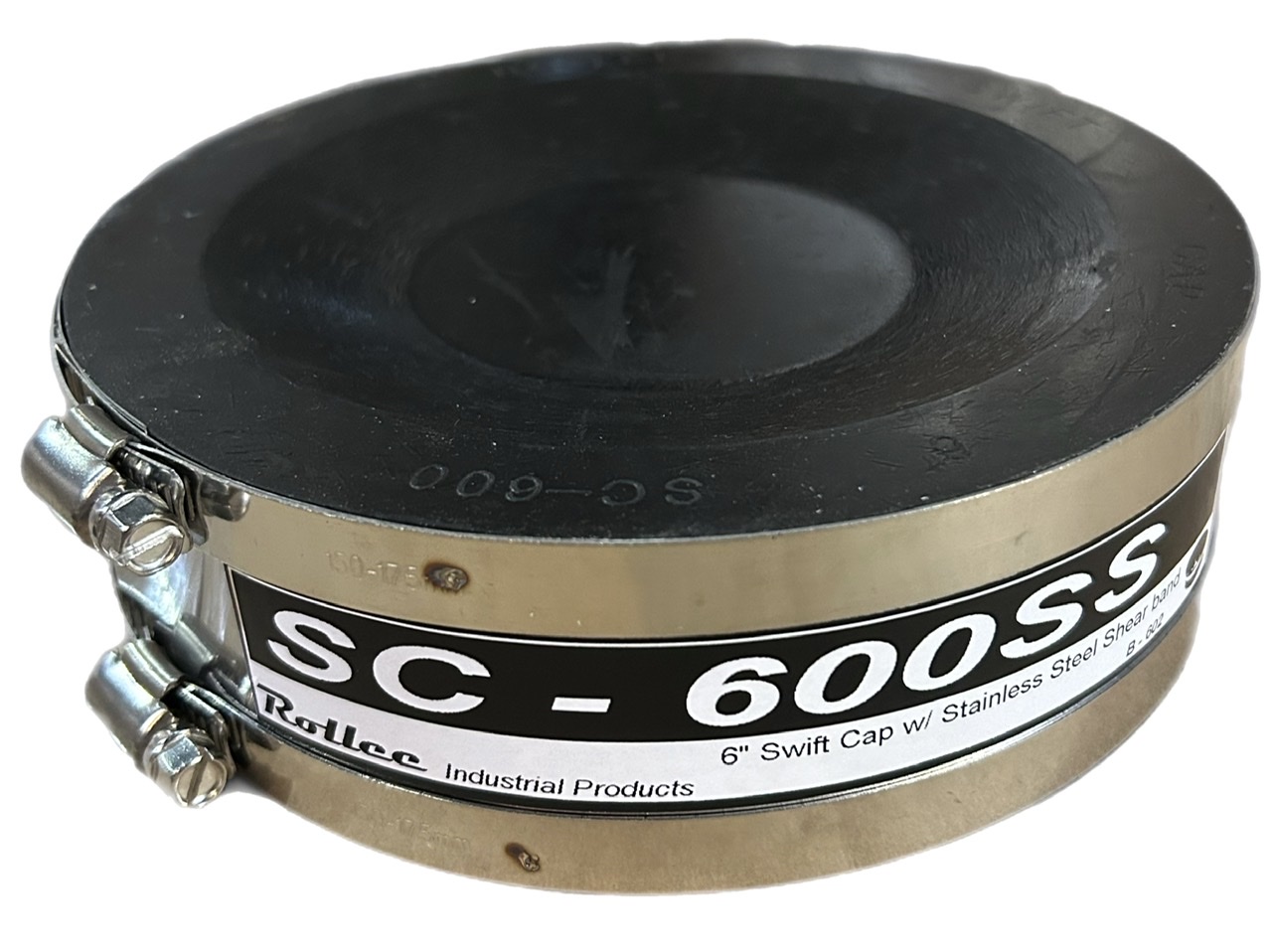

Shear band wrapped Swift Caps are available upon request

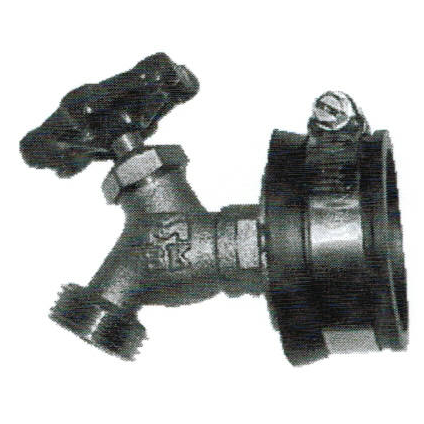

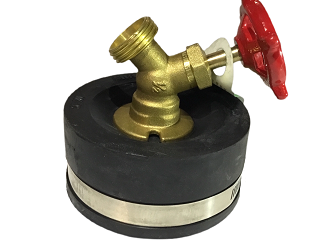

Hose Bibs
Designed for testing cast iron or schedule 40 plastic pipe
This Test cap offers a quick, easy way to fill and drain water used in testing sewer, drain, and waste systems.
Test Cap's are offered in sizes ranging from 1.50", 2.00", 3.00", 4.00", 6.00", 8.00"
Instructions for use
1. Install Test Cap on pipe
2. Tighten to 60 lbs torque
3. Connect hose to bibb
4. Open valve and fill pipe as needed
5. Observe for any leakage
6. Direct hose away and drain pipe.
